Product Details:
- Supplied Complete and Ready to Install Into Concrete
Substrate
- Grade 304 Stainless Steel
- Stanchion Drilled and Tapped for 1/2" Socket Head Cap
Screw
- Easy Installation
|
The most critical component in erecting a safe railing system is
the proper attachment of the Stanchion to the substrate. CRL has
engineered these Stanchions for
residential or commercial applications of our Elevated Glass
Railing System. CRL’s EGR Stanchions are

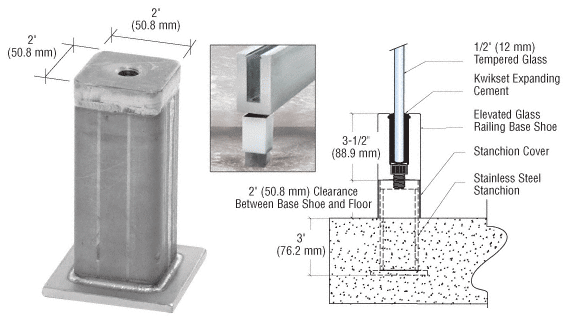

designed for core-mounted installations in concrete. When
installing the 5 inch (127 millimeter) Stanchions the minimum
embedment depth is 3 inch (76.2 millimeter), giving you a 2 inch
(50.8 millimeter) clearance under the Elevated Base Shoe. NOTE: Use
CRL Cat. No. SHCS12X34 Socket Head Cap Screws to properly secure
the Base Shoe to the Stanchion. All Stanchions must be installed
onto the concrete substrate before the Base Shoe can be set in
place with Socket Head Cap Screws. Installation instructions are
included.
