CRL Mill Aluminum B7S Series Custom Length Heavy-Duty Square Base Shoe Drilled With Hole Pattern D
C.R. Laurence CRL Mill Aluminum B7S Series Custom Length Heavy-Duty Square Base Shoe Drilled With Hole Pattern D | B7SDC
Category: Just Arrived!
CRL Mill Aluminum B7S Series Custom Length Heavy-Duty Square Base Shoe Drilled With Hole Pattern D
SKU: B7SDC
UPC:

Product Details:

  • Typically Used as the Base Channel for Glass Railing Systems in Arenas

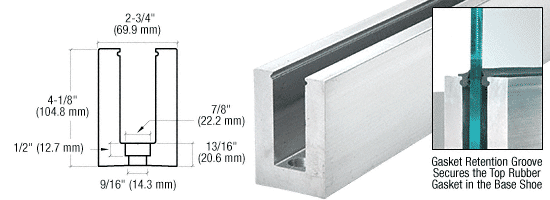

  • The CRL B7S Series Heavy-Duty Square Aluminum Base Shoe is used as the base channel for glass railing systems. It can be clad in several choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with Instructions, Installation Hints, Cleaning, and Refinishing techniques is available.

    All heavy base shoes have a stock length tolerance of plus or minus 3/4 inch (19 millimeter)
  • Hole Size: 9/16 inch (14.3 mm)
  • Counter Bore X Depth: 7/8 inch (22.2 mm) x 1/2 inch (12.7 mm)
  • Center-toCenter: 12 inch (305 mm)
