Category: Corners and Connectors for 3" Cap Railings

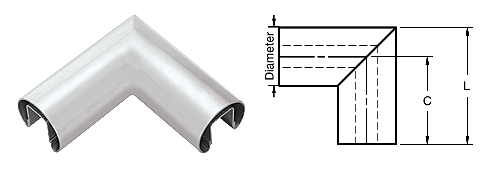

CRL Mill Aluminum 3" Diameter 90 Degree Horizontal Corner for 1/2" (12 mm) or 5/8" (16 mm) Glass Cap Railing
SKU: GR30HM
UPC:
$290.93
(20% off)
$242.44
Product Details:
- Welded and Finished. Ready to Install.
- Five Architectural Finishes Plus Mill Aluminum. New
Oval Corners in Three Finishes.
- Requires Two Connector Sleeves (Not
Included)
|
Interior slip-fit Horizontal Corners for 1/2" (12
mm) or 5/8" (16 mm) thick glass allow for hairline
joint assemblies with straight lengths of CRL Cap Rail. Use of our
Cat. No. 32629 Metal Contact Cement (see page R357) is required to
achieve a secure and permanent bond. Two Connector Sleeves are
required for use with each corner (see page R331). Each Horizontal
Corner is fabricated, finished, and individually packed. All of our
stainless and brass corners are fabricated from CRL Premium Cap
Rail, and are welded and finished to match. Our aluminum corners
are welded for painted finishes only. All anodized finishes utilize
a custom fabricated internal splice that creates an architecturally
pleasing mitered joint. Standard stainless alloy is 304.
Stainless alloy 316 is available on special order. For brass, alloy
260 is standard. Please contact us for more information or a
quote.
NOTE: When used with 1/2 inch (12 millimeter) glass, our GR5PV Cap
Rail Vinyl and 95CBL Silicone should be used to secure the glass.
When used with 5/8 inch (16 millimeter) glass, secure with shims
and 95CBL Silicone.
