Category: Small Profile Windscreen Base Shoes
CRL Mill Aluminum 240" Small Profile Windscreen Base Shoe for 3/8" (10 mm) or 1/2" (12 mm) Glass - Extrusion Only
SKU: W5B20
UPC:
$625.61
(20% off)
$521.34
Product Details:
- Ideal for Windscreens and Privacy Partitions (Not for
Hand Rail/Guard Rail Applications)
- Installs Using Wet Glaze Method
- Available With or Without Holes
|

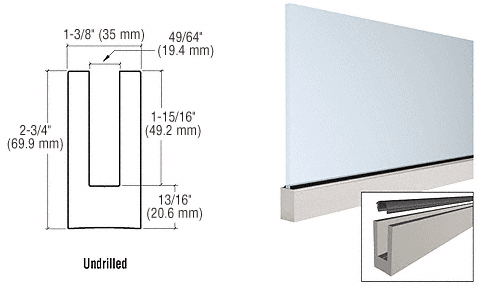

This CRL Small Profile Windscreen Base
Shoe for 3/8 or 1/2 inch (10 or 12 millimeter) glass
is typically used as the base channel for windscreens and privacy
partitions. It is not recommended for Hand Rail/Guard Rail
applications. The glass is secured using the Rockite® Cement
Wet Glaze Method. The Base Shoe is available either pre-drilled or
without holes (see chart below). The pre-drilled Base Shoe is
designed to use our WBA14X3
1/4 x 3 inch (6.4 x 76.2 millimeter) Wedge-Bolt Anchors and
AV1376 Washers for concrete
applications, 1/4 inch (6.4 millimeter) Hex Lag Bolts for wood
applications, or 1/4 (6.4 millimeter) Hex Bolts for metal or
thru-bolt applications. Extruded aluminum Small Profile Base Shoe
can be clad in five different architectural finishes. Roll-In Vinyl is available
for dressing off the top opening. A printed Instruction,
Installation Hints, Cleaning and Refinishing brochure is
available.
- Available in 120 and 240 inch (3.05 and 6.10 meter) Stock
Lengths or Custom Cut to Your Specifications
- Can Be Clad in Any of Five Architectural Finishes
- Custom Drilling, Mitering and Cutting Services Also
Available
NOTE: The most important part of the Base Shoe installation is
being sure that it is attached firmly with approved fasteners to a
secure substrate.
NOTICE: Because of the difficulty in handling 240" (6.10 m) stock
lengths, they will only be available for Will Call at any of our
regional warehouses, or for shipment after packaging and handling
concerns have been agreed to between CRL and the customer. All
heavy Base Shoes have a stock length tolerance of plus or minus 3/4
inch (19 millimeter).
