Product Details:

Typically Used as the Base Channel for Glass Railing Systems or Windscreens
Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
Custom Cutting and Mitering Service
Test Reports Available

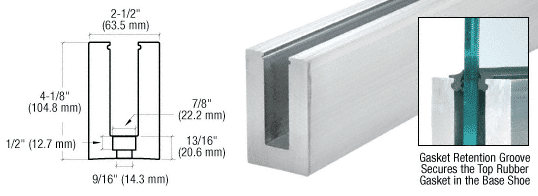

This CRL B5S Series Standard Square Aluminum Base Shoe is used as the base channel for glass railing systems. It can be clad in five choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Aluminum Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with Instructions, Installation Hints, Cleaning, and Refinishing techniques is available.

Counter Bore and Depth: 7/8 in x 1/2 in (22.2 x 12.7 mm)
Length: 120 in (3.05 m)
Center to Center: 12 in (305 mm)

All heavy aluminum base shoes have a stock length tolerance of plus or minus 3/4 inch (19 millimeter)

CAPACITY:
1/2 inch (12 millimeter) Thick Glass when using Taper-Loc™ Dry Glaze System;
1/2 or 5/8 inch (12 or 16 millimeter) Thick Glass when using Wet Glaze System
