Category: L21S Standard Square Base Shoes for 27/32" Laminated Glass
CRL Mill Aluminum 118-1/8" (3 m) L21S Series Standard Square Base Shoe Un-drilled for 21.52mm Laminated Tempered Glass
SKU: L21S10
UPC:
$1,120.70
(20% off)
$933.92
Product Details:
Typically Used as the Base Channel for Glass Railing Systems or
Windscreens
For 27/32" (21.52 mm) Laminated Tempered Glass (3/8" x
.060 x 3/8") Glass Make-Up
118-1/8" (3 m) Lengths
Works With LTL10 TAPER-LOC™ Taper Sets

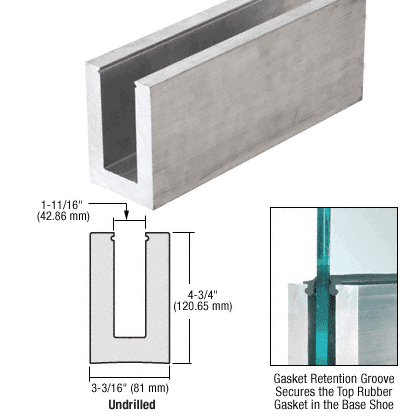

This CRL L21S Series Standard Square Aluminum Base
Shoe is used as the base channel for glass railing
systems. It can be clad in five choices of architectural finishes.
The most critical component in a railing system is the proper
attachment of the Aluminum Base Shoe to the substrate. CRL has
engineered and tested a variety of attachment methods, and has
developed an acceptable combination of drilling patterns and
fasteners.
Length: 118-1/8in (3 m)
Additional Notes:
All heavy aluminum base shoes have a stock length tolerance of plus
or minus 3/4 inch (19 millimeter)
CAPACITY:
21.52 millimeter Thick Laminated Tempered Glass when using
TAPER-LOC™ Dry Glaze System
CRL does not recommend direct powder coating of this base shoe
extrusion. Powder coated cladding applied over the base shoe is the
recommended method.
