Category: CRL Cologne Series Wall Mount Hinges

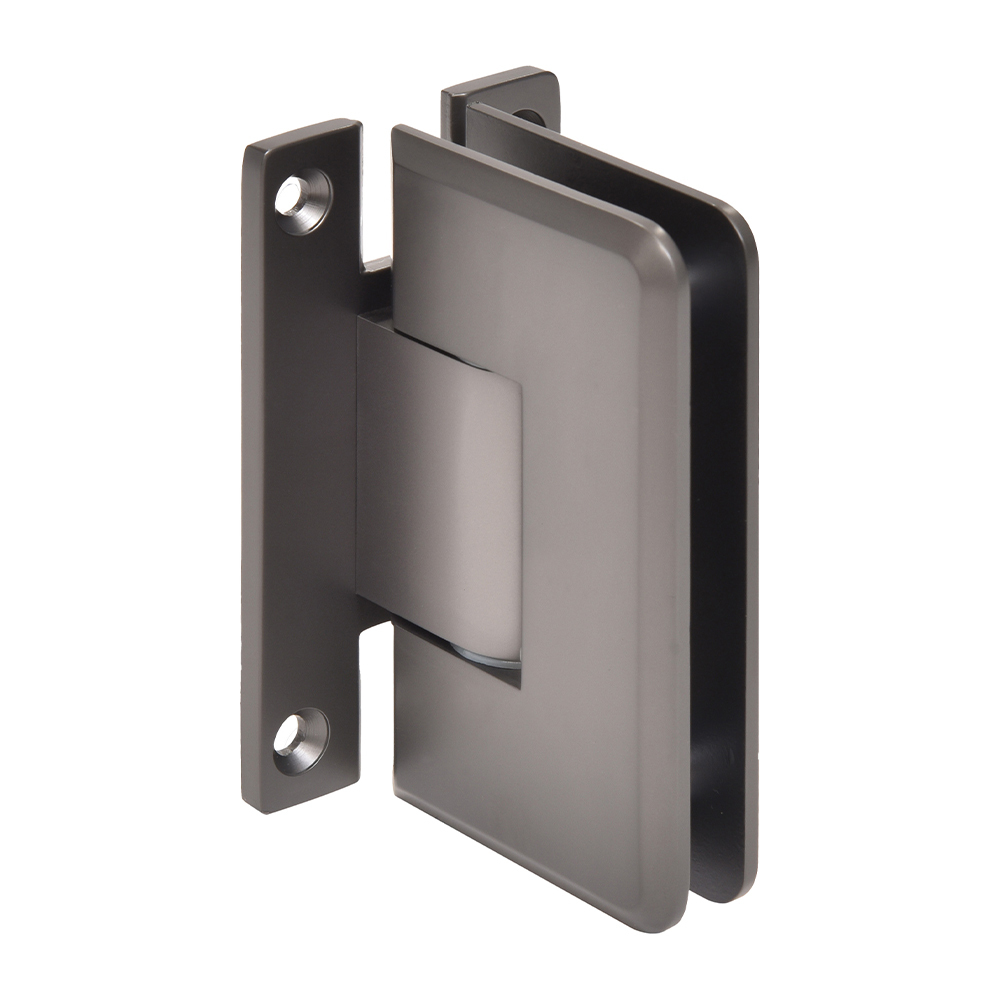

CRL Matte Gun Metal Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
SKU: C0L337MGM
UPC:
$157.60
(20% off)
$131.33
Product Details:
- Adjustable to Any Angle Up To 90 Degrees Without Removing
Door
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
The
CRL Cologne Adjustable Series of professional
hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter)
tempered safety glass. A variety of two styles, Wall Mount and
Glass-to-Glass types, gives design flexibility and allows the
designer/installer to create custom enclosures limited only by
their imagination. The Cologne Adjustable Series has taken our
popular Cologne Series to a new level. Adjustment to accommodate
the angle desired (up to 90 degrees) is done after the door is
installed. Once the door is hung, simply loosen the allen screws
and turn the door to the desired closed position. By merely
tightening the allen screws, your door will close precisely to 0
degrees. The door can swing 90 degrees inward and also 90 degrees
outward (adjusting angle from factory set position will reduce 90
degree swing in that direction). For doors pulling outwards only
(using a clear door jamb), you can adjust the hinge to close 5
degree inside the shower area, thus having the door close snugly
against the jamb.
Using two hinges with 3/8 to 1/2 inch glass (10 to 12 millimeter)
the hinge will hold up to 110 pounds (50 kilograms) with a maximum
width of 36 inches (914 millimeters).Using three hinges with 3/8 to
1/2 inch glass (10 to 12 millimeter) the hinge will hold up to 140
pounds (63 kilograms) with a maximum width of 36 inches (914
millimeters).
Specifications:
- Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
- Special Feature: Adjustable to any angle up to 90 degrees
without having to take door down
- Construction: Solid Brass
- Hinge Swings: 90 Degrees Inwards and Outwards (at factory set
position)
- Closing Type: Precise closing at 0 Degrees
- Cut-Out Required
- Includes: One Hinge, Gaskets, Screws and TemplateCustom
finishes are available on request. For more information contact CRL
Shower Door Technical Sales at (800) 421-6144 in the U.S., (877)
421-6144 from Canada, or (323) 588-1281 (International), and ask
for extension 7740, or online here.
