Product Details:

Larger Version of the Popular Cardiff Series to Accommodate 1/2" (12 mm) Thick Glass
Square Corners for a Sharp, Traditional Look
Adaptable to CRL Deluxe Header System

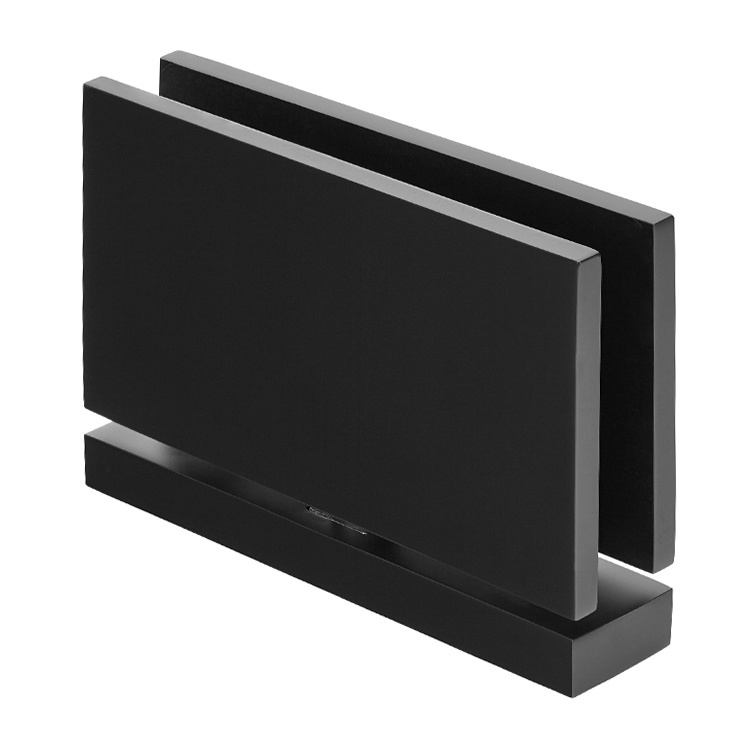

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are designed for use with 1/2 inch (12 millimeter) thick tempered safety glass. Some advantages of the Top and Bottom Mount Pivot Hinges include the fact that they carry the majority of the door weight on the bottom hinge, and have the ability to be inset from the door edge, enabling sufficient clearance for towel bars or other projections. Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.

Color: Matte Black

For Use With:       1/2 in (12 mm) Glass
Maximum Weight: 145 lbs (66 kg)
Maximum Width:   36 in (914 mm)

Minimum Order: 1 Each
