Product Details:

Completely Concealed Compact Design
UL 10C, CUL, and CSFM Listed
5 Year Limited Warranty

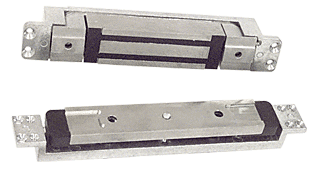

This CRLLocknetics® Electromagnetic Mortise Mounted Shear Lock  is designed for use with single and double metal doors and frames, or glass doors with top rails and metal frames. These compact size shear locks are totally concealed locking mechanisms, providing superior security and appearance.

Specifications
Holding Force: 3.000 pounds (13,344 newtons)
Input Voltage: 12/24 VDC (Automatic Selection)

Length: 11-9/16 in (294 mm)
Height: 1-1/2 in (38 mm)
Depth: 1-1/2 in (38 mm)

Minimum Order: 1 Each
