Category: CRL Laguna Series Sliding Glass Doors Parts and Accessories

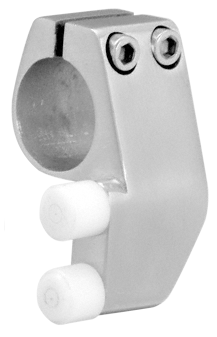

CRL Laguna Series Sliding Glass Doors Right Hand Door Stop
SKU: LS105RBS
UPC:
Product Details:
Prevent ‘Over Travel’ of Door Panel
Protects Finished Opening
Simple to Install
CRL Laguna Series Right Hand Door Stops prevent
‘over travel’ of the door panels used in Laguna Series Assemblies,
which helps protect the finished opening and the glass. Door Stops
are installed by simply sliding them over the end of the Cat. No.
LS104BS Top Sliding Tube and then tightening them in place.
NOTE: Left or right handing is determined from the door side of the
opening looking out.
Color: Brushed Stainless Steel
Minimum Order: 1 Each
System Limitations:
The following are recommended limitations for this system:
minimum panel width: 37-13/16" (960 mm)
maximum panel width: 53-9/16" (1360 mm)
maximum panel weight: 220 lbs (100 kg)
The panel height should never exceed 2.5 times the width of the
panel
Maximum available length of the top track is 104" (2640
mm)
