Product Details:

Assembly Contains All Necessary Hardware to Complete the Installation with 3/8" or 1/2" (10 or 12 mm) Tempered Glass
Tempered Glass NOT INCLUDED
Brushed Stainless Steel Construction

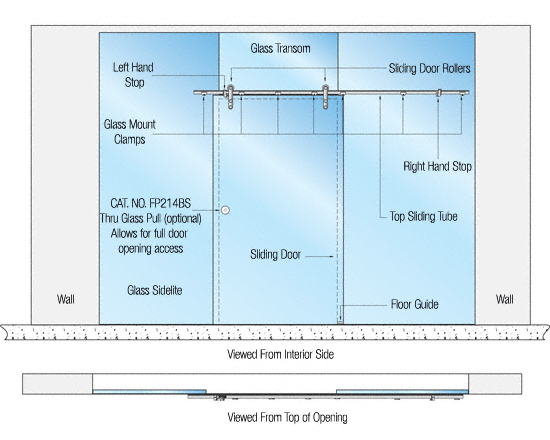

The CRL Laguna Series Single Sliding Door With Sidelites Glass Mount Installation Assembly contains all of the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door to the inside face of a sufficiently reinforced wall.
The Sliding Door Rollers can be attached to the glass with either countersunk or cap style attachment fasteners (both are supplied). The Rollers have a 1/8 inch (3.2 millimeter) +/- vertical adjustment to aid in door alignment. The CRL Cat. No. LSSW1 Spanner Head or CRL Cat. No. SW19 Spanner Wrench can be used to secure and tighten the LS100BS Top Rollers to the glass door panel. This system should be used with 3/8 inch or 1/2 inch (10 or 12 millimeter) tempered glass only. Laminated glass cannot be used in this system.

Color: Brushed Stainless Steel

Minimum Order: 1 Each

NOTE: CRL Cat. No. FP214BS 2-1/4 inch (57.2 mm) diameter Brushed Stainless Steel Thru-Glass Pull can be used, however it is offered as an option and not included in the Assembly. The thickness of the FP214BS Thru-Glass Pull doesn’t impede movement in front of the walls and allows for a full door opening access.
You can also use CRL Cat. No. 60LPBS 60 inch (1524 mm) or Cat. No. 48LPBS 48 inch (1219 mm) Brushed Stainless Steel Ladder Style Pull Handles as an option, however these pulls slightly reduce the door opening access. The Door Stops should be adjusted to prevent ‘over travel’.

SYSTEM LIMITATIONS:
The following are recommended limitations for this system:
minimum panel width: 37-13/16" (960 mm)
maximum panel width: 53-9/16" (1360 mm)
maximum panel weight: 220 lbs (100 kg)
The panel height should never exceed 2.5 times the width of the panel
Maximum available length of the top track is 104" (2640 mm)
