Product Details:

Self-Centering with Reversible 5º Pivot Pin
Available in Several Beautiful Finishes
Three Year Warranty

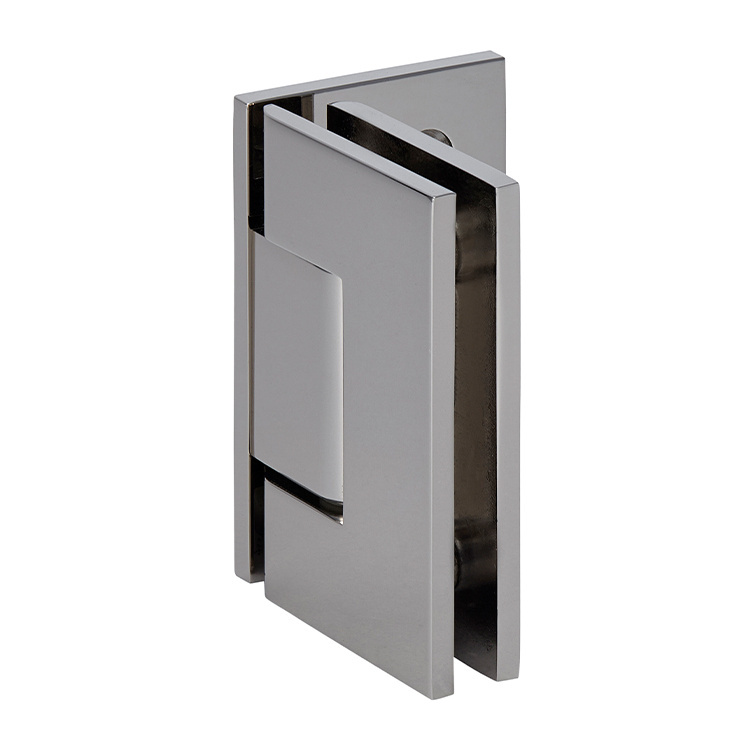

The CRL Junior Geneva Series of professional hinges is able to accommodate 1/4 to 5/16 inch (6 to 8 millimeter) glass. A variety of six styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. The same elegant European design that has made our Geneva Series so popular is available in a smaller version, the Junior Geneva, to offer additional application opportunities. Used to accommodate 1/4 to 5/16 inch (6 to 8 millimeter) thick glass, the Junior Geneva is made of solid brass. There are three Wall Mount styles along with 90°, 135° and 180° Glass-to-Glass styles. The Junior Geneva is self-centering and available in seven popular finishes. They contain a Reversible Pivot Pin for optional 5° offset door closure.

 Color: Polished Nickel

Minimum Order: 1 Each

Additional Product Information:
Standard Reversible Pivot Pin: Each Junior Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90º. The opposite side is marked 85º. Standard Junior Geneva Hinges come with the 90º side activated. Offset Models come with the Pin pre-set to 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Specifications:
Glass Thickness: 1/4 to 5/16 inch (6 to 8 millimeter) Tempered Safety Glass
Special Feature: Contains a Reversible 5° Pivot Pin. When activated, it allows 5° tighter door closure
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
