Category: CRL Junior Geneva 037 Wall Mount Full Back Plate Hinge

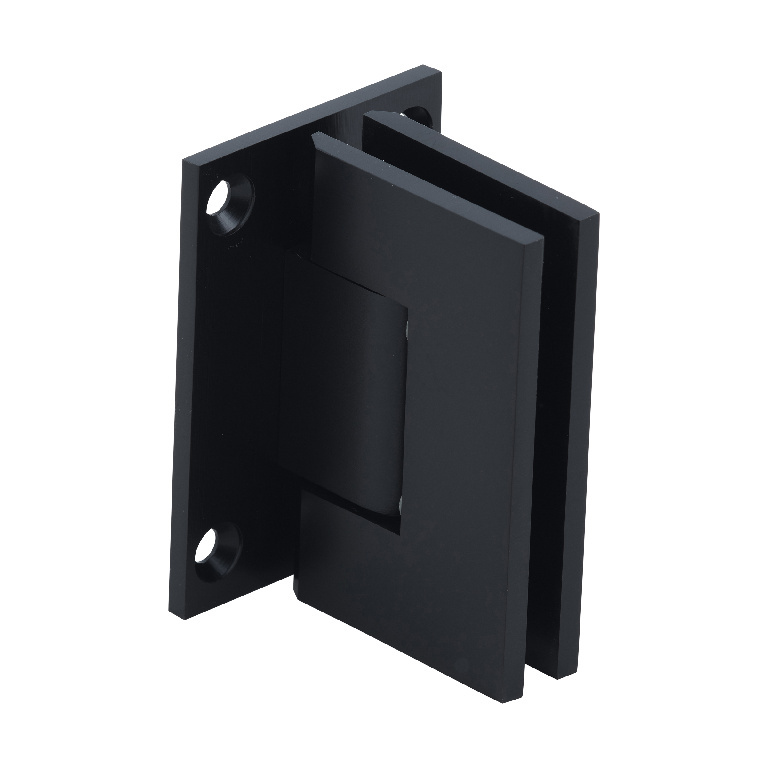

CRL Junior Geneva 037 Series Oil Rub Bronze Wall Mount Full Back Plate Hinge
SKU: JRG0370RB
UPC:
Product Details:
Self-Centering with Reversible 5º Pivot Pin
Available in Several Beautiful Finishes
The CRL Junior Geneva Series of professional
hinges is able to accommodate 1/4 to 5/16 inch (6 to 8
millimeter) glass. A variety of six styles, including Wall Mount
and Glass-to-Glass types, gives design flexibility. The same
elegant European design that has made our Geneva Series so popular
is available in a smaller version, the Junior Geneva, to offer
additional application opportunities. Used to accommodate 1/4 to
5/16 inch (6 to 8 millimeter) thick glass, the Junior Geneva is
made of solid brass. There are three Wall Mount styles along with
90°, 135° and 180° Glass-to-Glass styles. The Junior Geneva is
self-centering and available in seven popular finishes. They
contain a Reversible Pivot Pin for optional 5° offset door
closure.
Color: Oil Rub Bronze
Minimum Order: 1 Each
Additional Product Information:
Standard Reversible Pivot Pin: Each Junior Geneva
Hinge contains a Reversible Pivot Pin. One side of the Pin is
marked 90º. The opposite side is marked 85º. Standard Junior Geneva
Hinges come with the 90º side activated. Offset Models come with
the Pin pre-set to 85º (5º tighter closure into shower interior).
The Pin can be rotated (not flipped upside down) to activate the
other side.
Specifications:
Glass Thickness: 1/4 to 5/16 inch (6 to 8 millimeter) Tempered
Safety Glass
Special Feature: Contains a Reversible 5° Pivot Pin. When
activated, it allows 5° tighter door closure
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
