Category: CRL Overhead Concealed Closer Packages for End-Load Installations
CRL Jackson Medium Duty 90 Degree Non Hold-Open Overhead Concealed Door Closer With "H" End-Load Hardware Package - REPLACED BY 21101A03
SKU: J90NH0H
UPC:
$230.01
(20% off)
$191.68
Product Details:
"H" Center-Hung, End-Load Hardware
Package For Doors with One Inch Deep Top Rails
Suitable for Doors From 30 to 42 Inch (762 to 1,069 mm)
Wide
Door Closers Cross Reference Chart

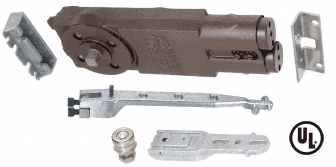

The CRL Jackson J90 H Series Overhead Closer
Package consists of a Medium Duty Door Closer
suitable for doors from 30 inch (762 millimeters) to 42 inches
(1,069 millimeters) wide. The Closer is packaged complete with
Mounting Clips, Side Load Arm, Type "G" Bottom Pivot Set
for floor mounting and complete installation instructions.
The Closer has dual independent valves for closing operation (one
valve for closing, one valve for latching).
90º and 105º Hold Open and No-Hold Open models are
available.
Closers fit into standard 1-3/4 x 4 inch (44.5 x 101.6 millimeter)
(or larger) header extrusions.
Closer Body Length: 11-5/8 in (295 mm)
Closer Body Width: 3-11/16 in (94 mm)
Minimum Order: 1 Each
