CRL Jackson Adjustable Spring Power 105 Degree Non Hold-Open Overhead Concealed Door Closer With "P" Hardware Package for 7/8" Top Rail - REPLACEMENT PART 21101AP17
C.R. Laurence CRL Jackson Adjustable Spring Power 105 Degree Non Hold-Open Overhead Concealed Door Closer With "P" Hardware Package for 7/8" Top Rail - REPLACEMENT PART 21101AP17  | V105NH0P
Category: Jackson Standard Overhead Concealed Closer Body Only
CRL Jackson Adjustable Spring Power 105 Degree Non Hold-Open Overhead Concealed Door Closer With "P" Hardware Package for 7/8" Top Rail - REPLACEMENT PART 21101AP17
SKU: V105NH0P
UPC:

$321.67 (20% off)

$268.06

Product Details:

"P" Hardware Package For 7/8" Deep Top Rail
Adjustable Spring Power Size 1 to 4 Closer Body
Will Retrofit Existing Fixed Size Overhead Concealed Closers

Door Closers Cross Reference Chart

The Jackson Adjustable Spring Power Overhead Concealed Door Closer is available for A.D.A barrier-free applications. The closer is adjustable in a range of Sizes 1 through 4, allowing the spring power to be set for A.D.A. handicap barrier-free opening force requirements.

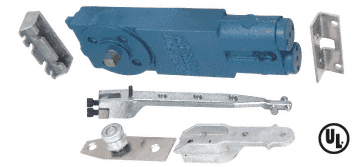

The "P" Package, consisting of CRL8010FS Standard Mounting Clips, CRL8010PT End Load Top Arm Assembly and CRL8010DP Bottom Pivot, is intended for new door installations with One Inch (25.4 millimeter) deep top rail and side-load applications.
This closer will also retrofit existing Jackson and similar style fixed-size closer installations.

Closer Body Length: 11-5/8 in (295 mm)
Closer Body Width:   3-11/16 in (94 mm)

Minimum Order: 1 Each
