1000 Pound Capacity
ANSI-156.4 Grade 1
Door
Closers Cross Reference Chart

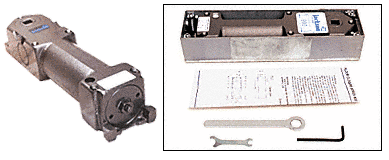

The CRL 900 Series Multi-Sized
Floor Mount Door Closer is a heavy duty, fully adjustable
closer designed for new and retrofit applications. Accessories are
available for both double and single acting doors. With its 1,000
pound (453.6 kilogram) capacity, the 900 Series Floor Closer can be
used with larger and heavier interior or exterior doors for longer,
maintenance free performance.
These closers are available in dual 90º and
120º, or 105º only Hold Open, and No Hold Open models.
This fully adjustable closer meets ADA
requirements in that it can be set at 5 or 8.5 pound opening
forces.
The unique plus or minus 3° centering
adjustment simplifies double door alignment.
Additional Product Information:
Package Contents: Closer Body, Cement Case,
Installation Tool Kit and Instructions.
Optional Spindles, Bottom Arms, Cover
Plates, Pivots and other optional accessory parts available
are:
CRL9040S Tapered Style
Spindles
CRL9040CB Center-Hung
Bottom Arm
J7020CP Cover Plates
CRL9077 or CRL9079 3/4" Offset
Bottom Arms
J580 Adjustable Center-Hung
Top Pivot
|
