1000 Pound Capacity

ANSI-156.4 Grade 1

Door Closers Cross Reference Chart

The CRL 900 Series Multi-Sized Floor Mount Door Closer is a heavy duty, fully adjustable closer designed for new and retrofit applications. Accessories are available for both double and single acting doors. With its 1,000 pound (453.6 kilogram) capacity, the 900 Series Floor Closer can be used with larger and heavier interior or exterior doors for longer, maintenance free performance.

These closers are available in dual 90º and 120º, or 105º only Hold Open, and No Hold Open models.

This fully adjustable closer meets ADA requirements in that it can be set at 5 or 8.5 pound opening forces.

The unique plus or minus 3° centering adjustment simplifies double door alignment.

Additional Product Information:

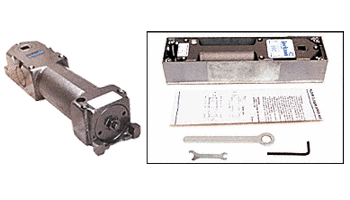

Package Contents: Closer Body, Cement Case, Installation Tool Kit and Instructions.

Optional Spindles, Bottom Arms, Cover Plates, Pivots and other optional accessory parts available are:

CRL9040S Tapered Style Spindles

CRL9050S "MAB" Style Spindles

J7080 Center-Hung Bottom Arm

CRL9040CB Center-Hung Bottom Arm

J7020CP Cover Plates

CRL9077 or CRL9079 3/4" Offset Bottom Arms

M19RH or M19LH 3/4" Offset Intermediate Pivots

J580 Adjustable Center-Hung Top Pivot

CRL9075 3/4" Offset Top Pivot

R180 3/4" Offset Top Pivot
