CRL Hydraulic Boom Manipulator
C.R. Laurence CRL Hydraulic Boom Manipulator | R0W1
Category: Glass Lifting Frames
CRL Hydraulic Boom Manipulator
SKU: R0W1
UPC:

$7,065.63 (20% off)

$5,888.02

Product Details:

  • Large Wheels for Easy Rolling
  • 1000 Pound Rating
  • Can be Knocked Down for Transporting and Re-Assembled in Minutes

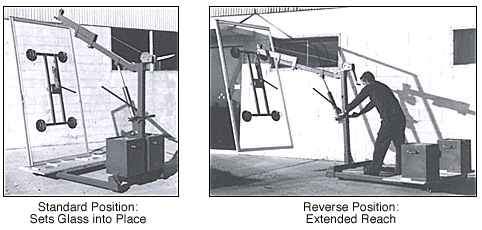

This innovative tool has a hydraulic controlled boom so you can set glass in place for glazing in difficult to reach positions. Used in conjunction with a vacuum cup frame (not included), the CRL Hydraulic Boom Manipulator simplifies glass handling anywhere you use it. The boom can also be reversed, which extends the unit's reach (optional ballst boxes required). It is easily assembled without tools in only five minutes. You can knock down the unit and move it from floor to floor to glaze high-rise buildings from the inside. Simply lower the glass into position from one floor above using the standard manual winch; put it in a pickup or van and move it from job to job. Electric Winch options are available also. The ROW1 Manipulator is designed for use with the R0W40 (4-Cup) and ROW60 (6-Cup) manual vacuum cup frames.

Note: The ballast boxes shown in photo are not included. They can be special ordered by contacting us at .
Do not exceed the maximum recommended weight limit of this machine. Serious injuries can occur to yourself and bystanders. Always consult with CRL or the manufacturer before operating for the first time. The two piece boom shown on the image above has been changed to a stronger one piece boom for added safety.
