Product Details:
- Die Cut Foam Pad with Adhesive on One
Side
- For 1/2" (12 mm) Thick Glass
- Fast and Accurate Spacing and Sealing of Glass
Panels
- Can Be Adhered Together in 1/4" (6 mm) Increments to
Increase the Gap Between the Glass Panels
|
These CRL High Density Foam Pads not
only act as spacers between panels of glass, they also create a
seal at the end of selected panels, acting as a dam for your
desired pour area. They are easily installed and perfectly aligned
every time using the CRL Rubber
Spacing Block and Sealing Pad Installation Tool. The adhesive
on one side allows the pads to be adhered together so spacing can
be increased in 1/4 inch (6 millimeter) increments to meet your
needs. Use with Rigid Rubber Spacing Blocks on slant pours to
prevent glass movement during installation. NOTE: You must cut 5/8
inch (16 millimeter) off of the length of the Spacing and Sealing
Pad when used with B5L Series Base Shoe.

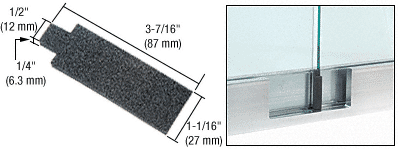

- Pad Width: 1-1/16 in (27 mm)
- Pad Thickness: 1/4 in (6.4 mm)
- Pad Length: 3-7/16 in (87 mm)
