Product Details:
- Attractively Recessed in the Cap Rail
Channel
- Improves Safety by Defining the Stairs. Only Lights
Downward - No Irritating Side Glare.
- Meets Top of Tread Luminance Values (FC). 50,000 Hour
LED Bulb Life.
|
The CRL Cap Rail Illumination System
is designed to produce 0.2 FC (Foot Candle) illumination required
by the (NFPA) Life Safety Code at 38 inches (965 millimeters) above
the stair nosing. This can provide a lighted egress path for safe
exiting from low illuminated areas. The 60-degree beam pattern
provides adequate illumination in either warm or cool white. Also
available for mood lighting are red, green, blue, and amber colors,
but these will have to be individually checked for compliance to
the Life Safety Code (See Photometrics and Specifications at
crlaurence.com).
You can create individual runs of up to 25 feet (7.62 meters), and
split home runs of up to 100 feet (30.48 meters). LED’s are mounted
on a current-controlled driver board which is housed in a 3/4 inch
(19 millimeter) wide black PVC housing with clear PVC lens.
NOTE: Increased illumination LED’s are available for other code
requirements that specify higher illumination values. Contact us

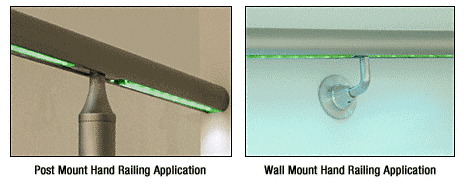

for more information. Wall Mount Hand Railing Application Post
Mount Hand Railing Application A us Representative will be more
than glad to guide you through this new technology, and provide you
with the correct components for your needs. Call (888) 663-9830 in
the U.S., (877) 421-6144 from Canada, or (323) 588-1281
International. Ask for Ext. 7730. You can also e-mail us through
crlaurence.com. From the home page click on Contact Us, and then
click on Technical Sales.
