Product Details:
- Perfect for Food Service Areas
- Custom Manufactured to Your
Specifications
- Available in Five Finishes
|

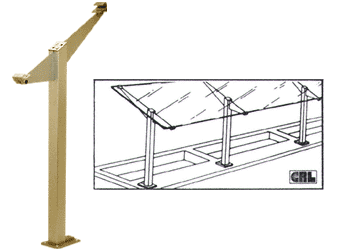

By using CRL Partition Posts with Shelf
Brackets, the top glass shelf can be continuously
supported by as many brackets as desired. No strips, plates or bars
on top of the glass, therefore, no hole drilling is required nor is
it neccessary to splice shelves on every bracket. The top shelf is
held firmly at both the front and rear so that the shelf cannot be
accidentally raised or moved. The slanted top brackets hold glass
from six to 14 inches (150 to 350 millimeters) wide. The D997
Partion Post can be fabricated with side channels to accommodate
glass partitions from counter to shelf. When ordering
please specify:
- Post number
- Post height with air space
- Top shelf width up to 14 inches (350 millimeters) - use
increments of six inches (150 millimeters), eight inches (200
millimeters), 10 inches (250 millimeters), 12 inches (300
millimeters) and 14 inches (350 millimeters).
- Specify intermediate bracket width (if any): sizes are four
inches (100 millimeters), six inches (150 millimeters) eight inches
(200 millimeters). Also indicate the distance from the top of the
counter to the intermediate bracket.
- Indicate desired finish
- Indicate quantity of each type of bracket: left hand (open
end), right hand (open end), left hand (closed end), right hand
(closed end), Center.
Please note that a diagram of the desired post layout must
accompany each order. Determine the Right Hand and Left Hand posts
from the "clerk" side of the partition.
