Product Details:

Made From Highest Quality 6063 Alloy
Available in Many Finishes
Use Either D650 Nylon or D649 Steel Wheel Assemblies

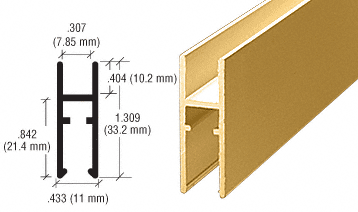

CRL Aluminum MC610 H-Bar is used primarily for showcase sliding doors. Designed for use with 3/16 inch (5 millimeter), 7/32 inch (5.5 millimeter) and 1/4 inch (6 millimeter) materials. 3/16 inch (5 millimeter) and 7/32 inch (5.5 millimeter) materials require use of DV765 Vinyl for proper fit.

Color:   Gold Anodized
Length: 12 ft (3657.6 mm)
Thickness: .055 in (1.40 mm)

Minimum Order: 1 Stock Length

CRL Aluminum Extrusions and Accessories allow you to customize track assemblies to your individual needs. Made from the highest quality 6063 alloy T-5 aluminum, our extrusions are uniformly anodized. Anodizing is the process of electronically adding a thicker coat of oxidizing to aluminum, which protects the metal from scratches, blemishes and atmosphere. The standard finish is commercial satin anodized, but it is also available in commercial 145 gold, duranodic 312 bronze, flat black, bright and bright gold anodized finishes. D5649 Steel Wheel units with this "H" Bar
