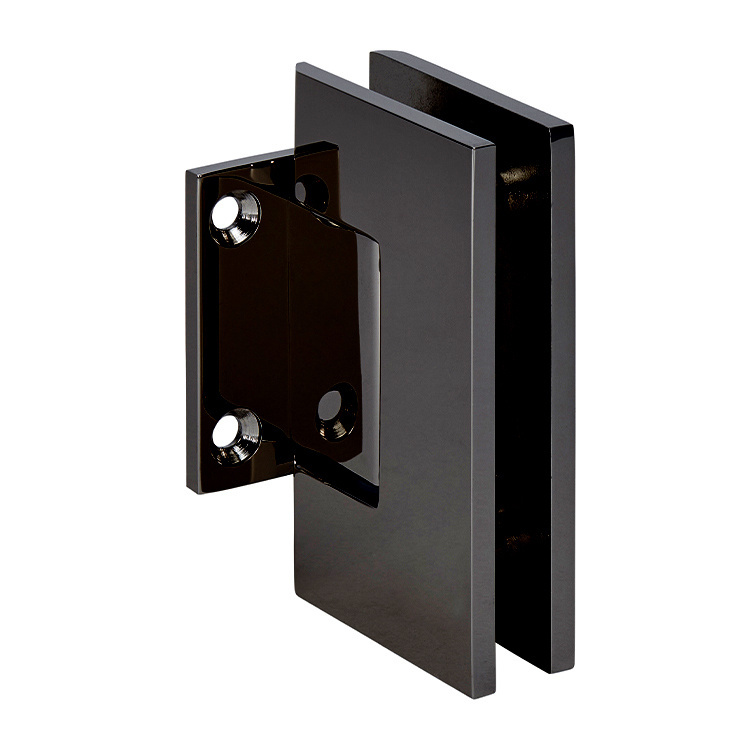

CRL Geneva Series Gun Metal Wall Mount Short Back Plate Hinge (Standard Model)
CRL Geneva Series Gun Metal Wall Mount Short Back Plate Hinge (Standard Model) | GEN074GM
Category: CRL Geneva 074 Wall Mount Short Back Plate Hinge
CRL Geneva Series Gun Metal Wall Mount Short Back Plate Hinge (Standard Model)
SKU: GEN074GM
UPC:

$103.14 (20% off)

$85.95

Product Details:



Self-Centering with Reversible 5º Pivot Pin
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass

The CRL Geneva Series of professional hinges is able to accommodate 5/16 to 1/2 inch (8 to 12 millimeter) glass. A variety of 11 styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. The cut-out with the short Back Plate allows glass to be closer to the wall. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Geneva Hinges are self-centering, and contain a Reversible 5º Pivot Pin.

Color: Gun Metal

Minimum Order: 1 Each

Additional Product Information:
Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90º. The opposite side is marked 85º. Standard Geneva Hinges come with the 90º side activated. Offset Models come with the Pin pre-set to 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Specifications:
Glass Thickness: 5/16 to 1/2 inch (8 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
