Category: CRL Geneva 580 5º Pre-Set Glass-to-Glass Hinge

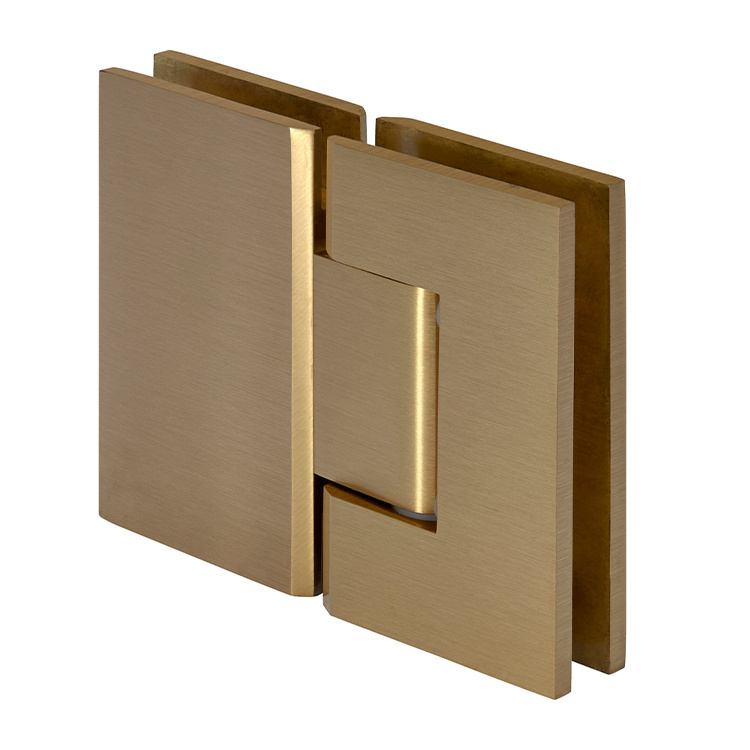

CRL Geneva 580 Series Satin Brass 180º Glass-To-Glass Hinge with 5º Offset
SKU: GEN580SB
UPC:
$123.30
(20% off)
$102.75
Product Details:

Factory Set for 5º Offset Closure into Shower Interior
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The Geneva Series of professional hinges is
able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A
variety of 11 styles, including Wall Mount and Glass-to-Glass
types, gives design flexibility. The cut-out with the short Back
Plate allows glass to be closer to the wall. They are made of solid
brass with all moving parts (pins and springs) in stainless steel.
Geneva Hinges are self-centering, and contain a Reversible 5º Pivot
Pin.
Color: Satin Brass
Minimum Order: 1 Each
Additional Product Information:
Standard Reversible Pivot Pin: Each Geneva Hinge
contains a Reversible Pivot Pin. One side of the Pin is marked 90º.
The opposite side is marked 85º. Standard Geneva Hinges come with
the 90º side activated. Offset Models come with the Pin pre-set to
85º (5º tighter closure into shower interior). The Pin can be
rotated (not flipped upside down) to activate the other side.
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 mm) Tempered Safety
Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
