CRL Geneva 545 Series Oil Rub Bronze 135° Glass-to-Glass Hinges
CRL Geneva 545 Series Oil Rub Bronze 135° Glass-to-Glass Hinges | GEN5450RB
Category: CRL Geneva 545 5º Pre-Set Glass-to-Glass Hinge

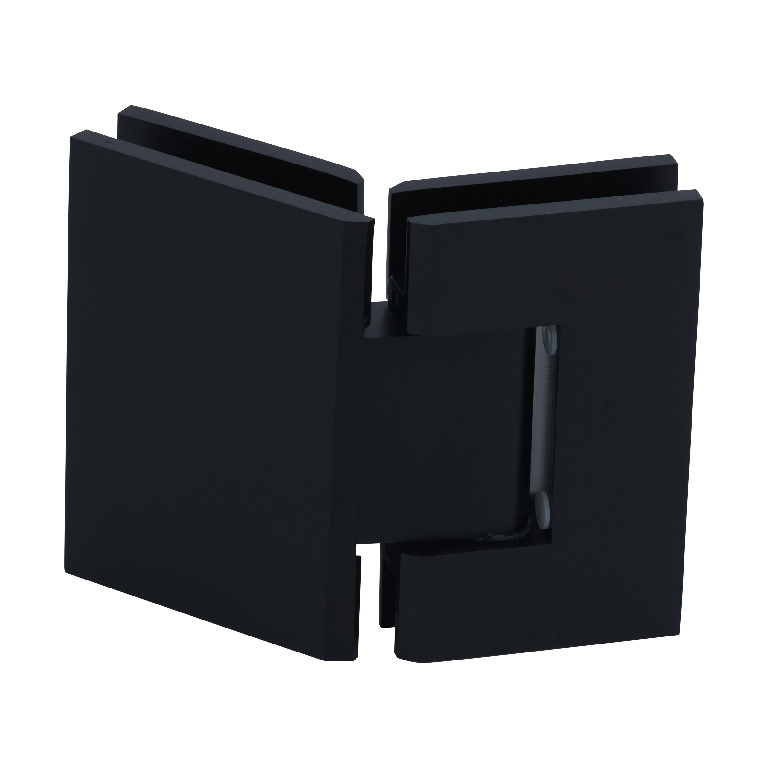

CRL Geneva 545 Series Oil Rub Bronze 135° Glass-to-Glass Hinges
SKU: GEN5450RB
UPC:

$169.06 (20% off)

$140.88

Product Details:

Adjustable to Any Angle Up To 90° Without Removing Door
Available in Several Beautiful Finishes
5 Degree Pre-Set Model

These new CRL Geneva 135° Glass-to-Glass Hinges are used in conjunction with the appropriate Geneva Pony Wall Mount Hinge for a 135° angle. Geneva Hinges are self-centering, and contain a reversible 5° Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel. Color: Oil Rub Bronze

Minimum Order: 1 Each

Additional Product Information:
STANDARD REVERSIBLE PIVOT PIN:
Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pivot Pin is marked at 90°; the opposite side of the Pivot Pin is marked 85°. Standard Geneva Hinges come with the 90° side activated, which brings the door to the standard closing position. Offset Models come with the Pin pre-set for 85° (5° tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

SPECIFICATIONS: Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) tempered safety glass. There are 13 standard finishes, and custom finishes are available upon request. Templates specific to the GEN045 Hinges are packed in each box.

One each hinge per package.
Important Note:
For 135° installations, it is required that the face of the pony wall be at a 45° angle to the wall, and a 90° angle to the door plane.
Maximum Capacities: 3/8" (10mm) glass: using 2 hinges = 80 lbs (36kg) and door width 28" (711mm); using 3 hinges = 120 lbs (54kg) and door width 32" (813mm).
1/2" (12mm) glass: using 2 hinges = 80 lbs (36kg) and door width 28" (711mm); using 3 hinges = 120 lbs (54kg) and door width 32" (813mm).
*NOTE: Do not exceed maximum door weight or width when choosing proper quantity of hinges.
