Category: CRL Geneva 544 5º Pre-Set Wall Mount Offset Back Plate Hinge

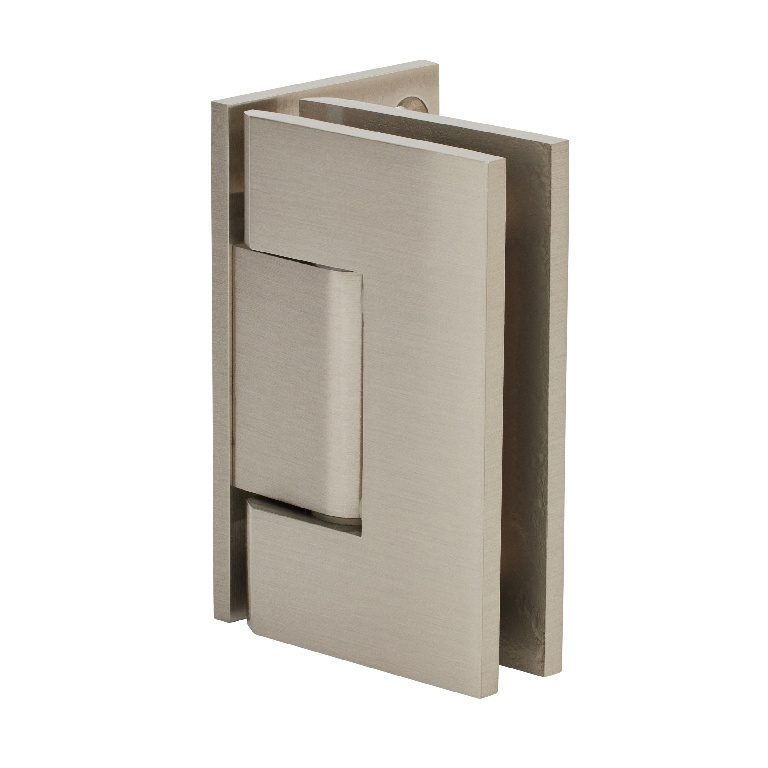

CRL Geneva 544 Series Brushed Nickel Wall Mount Offset Back Plate Hinge
SKU: GEN544BN
UPC:
Product Details:

Adjustable to Any Angle Up To 90° Without Removing Door
Available in Several Beautiful Finishes
Three Year Warranty
The CRL Geneva Series of professional hinges is
able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A
variety of 11 styles, including Wall Mount and Glass-to-Glass
types, gives design flexibility. They are made of solid brass with
all moving parts (pins and springs) in stainless steel. Geneva
Hinges are self-centering, and contain a Reversible 5º Pivot
Pin.
Color: Brushed Nickel
Minimum Order: 1 Each
Additional Product Information:
Standard Reversible Pivot Pin: Each Geneva Hinge
contains a Reversible Pivot Pin. One side of the Pin is marked 90º.
The opposite side is marked 85º. Standard Geneva Hinges come with
the 90º side activated. Offset Models come with the Pin pre-set to
85º (5º tighter closure into shower interior). The Pin can be
rotated (not flipped upside down) to activate the other side.
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
