CRL Geneva 337 Series Satin Brass Adjustable Wall Mount Full Back Plate Hinge
CRL Geneva 337 Series Satin Brass Adjustable Wall Mount Full Back Plate Hinge | GEN337SB
Category: CRL Geneva Series Adjustable Wall Mount Hinges

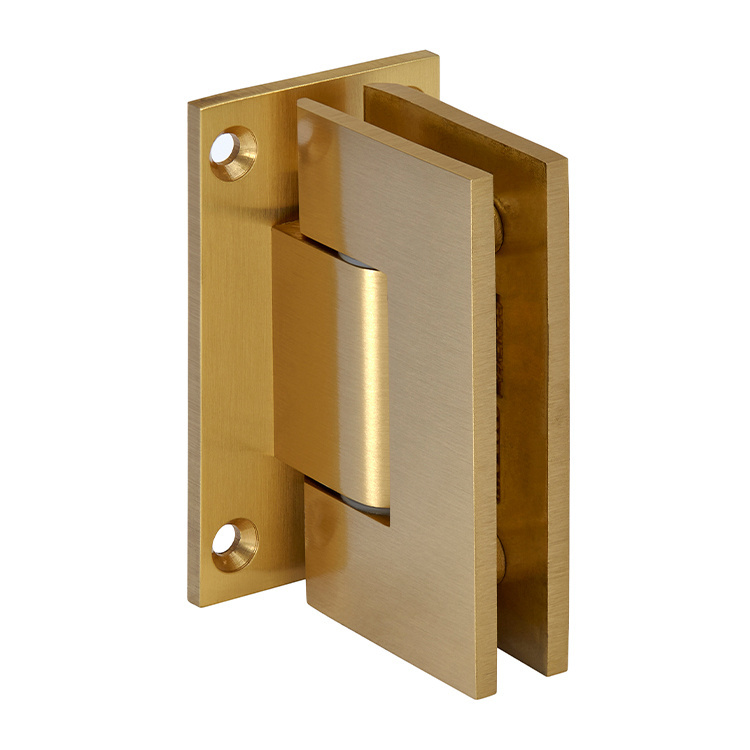

CRL Geneva 337 Series Satin Brass Adjustable Wall Mount Full Back Plate Hinge
SKU: GEN337SB
UPC:

$94.72 (20% off)

$78.93

Product Details:

Adjustable to Any Angle Up To 90° Without Removing Door
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass

The CRL Geneva Adjustable Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) tempered safety glass. A variety of two styles, Wall Mount and Glass-to-Glass types, gives design flexibility and allows the designer/installer to create custom enclosures limited only by their imagination. The Geneva Adjustable Series has taken our popular Geneva Series to a new level. Adjustment to accommodate the angle desired (up to 90°) is done after the door is installed. Once the door is hung, simply loosen the allen screws and turn the door to the desired closed position. By merely tightening the allen screws, your door will close precisely to 0°. The door can swing 90° inward and also 90° outward (adjusting angle from factory set position will reduce 90° swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5° inside the shower area, thus having the door close snugly against the jamb.

Color: Satin Brass

Minimum Order: 1 Each

Additional Product Information:
Specifications:

Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90° without having to take door down
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Precise closing at 0°
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
Important Note:
Door glass width may require alteration from standard clearance deductions when adjusting angles.
