Category: CRL Geneva Series Adjustable Wall Mount Hinges

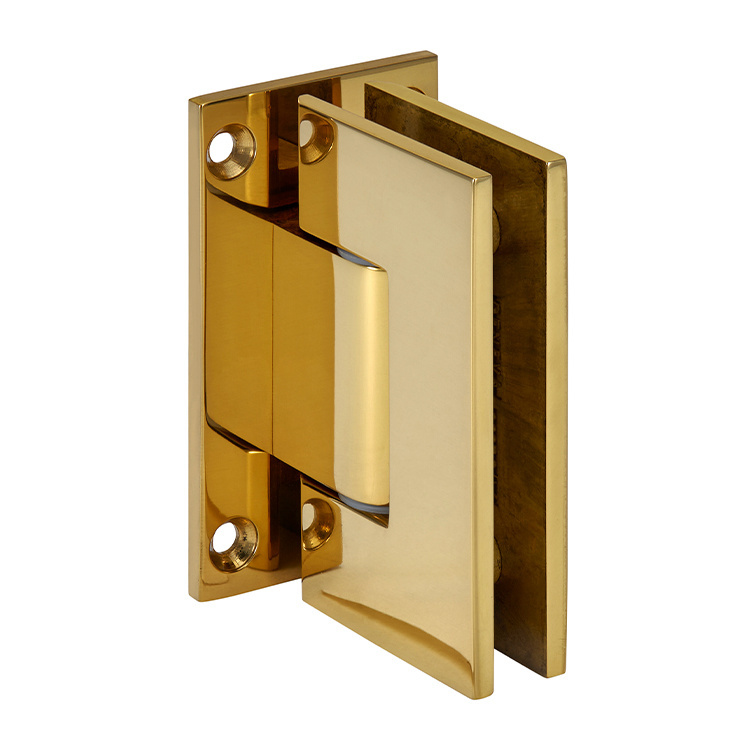

CRL Geneva 337 Series Polished Brass Adjustable Wall Mount Full Back Plate Hinge
SKU: GEN337BR
UPC:
Product Details:

Adjustable to Any Angle Up To 90° Without Removing Door
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The CRL Geneva Adjustable Series of
professional hinges is able to accommodate 3/8 to 1/2 inch (10 to
12 millimeter) tempered safety glass. A variety of two styles, Wall
Mount and Glass-to-Glass types, gives design flexibility and allows
the designer/installer to create custom enclosures limited only by
their imagination. The Geneva Adjustable Series has taken our
popular Geneva Series to a new level. Adjustment to accommodate the
angle desired (up to 90°) is done after the door is installed. Once
the door is hung, simply loosen the allen screws and turn the door
to the desired closed position. By merely tightening the allen
screws, your door will close precisely to 0°. The door can swing
90° inward and also 90° outward (adjusting angle from factory set
position will reduce 90° swing in that direction). For doors
pulling outwards only (using a clear door jamb), you can adjust the
hinge to close 5° inside the shower area, thus having the door
close snugly against the jamb.
Color: Polished Brass
Minimum Order: 1 Each
Additional Product Information:
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Special Feature: Adjustable to any angle up to 90° without having
to take door down
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Precise closing at 0°
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
Important Note:
Door glass width may require alteration from standard clearance
deductions when adjusting angles.
