Product Details:

New Model Eliminates Small End Plate Covering Hinge on Edge of Fixed Panel
Requires Holes in Fixed Panel and Cut-Out in Door
Use Monolithic Tempered Glass

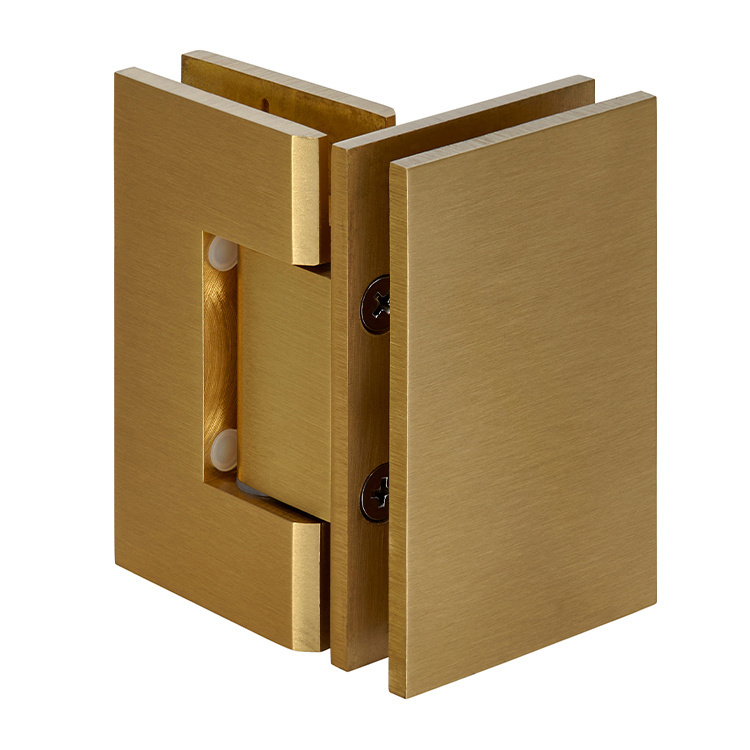

The CRL Geneva 092 Series 90° Glass-to-Glass Hinges replace the old style Geneva 090 Series 90° Glass-to-Glass Hinge which required a cut-out in both the door and the fixed panel. This new style requires only two holes (per hinge) in the fixed panel, and a cut-out in the door.

 Color: Satin Brass

Minimum Order: 1 Each

Additional Product Information:
After installation of the old style Geneva a small end plate was adhered to the edge of the fixed panel. The new style eliminates the small end plate, leaving a more aesthetic, uninterrupted glass edge for the fixed panel.

Standard Reversible Pivot Pin:
Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90°. The opposite side is marked 85°. Standard Geneva Hinges come with the 90° side activated, which brings the door to the standard closing position. Offset Models come with the Pin pre-set for 85° (5° tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
