Category: CRL Geneva 045 135º Glass-to Glass Hinge

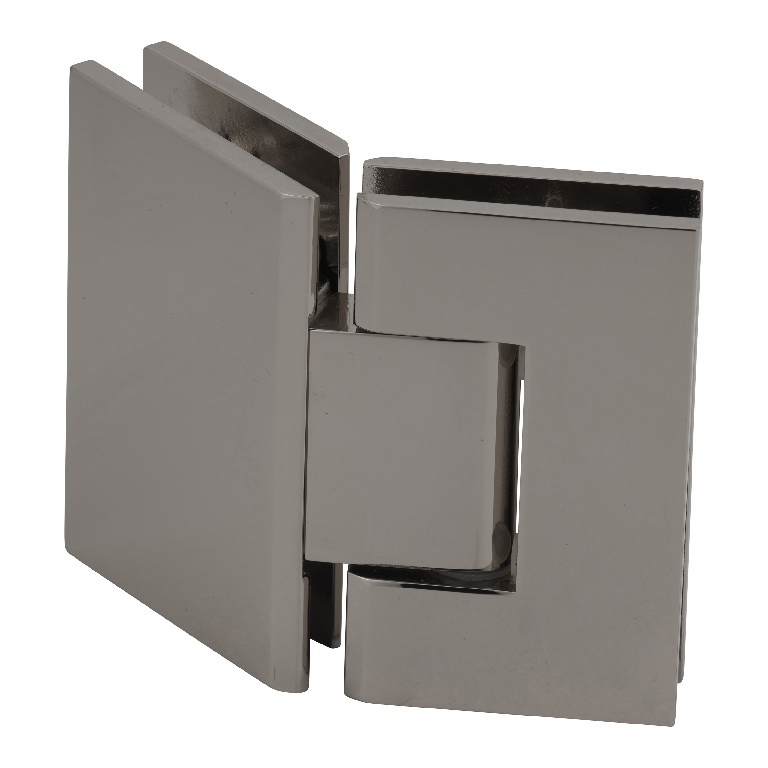

CRL Geneva 045 Series Polished Nickel 135° Glass-to-Glass Hinges
SKU: GEN045PN
UPC:
$135.50
(20% off)
$112.92
Product Details:
New Page 1

Self-Centering with Reversible 5º Pivot Pin
Available in Several Beautiful Finishes
135 Degree Glass-to-Glass Standard Model
These new CRL Geneva 045 Series 135° Glass-to-Glass
Hinges are used in conjunction with the appropriate Geneva
Pony Wall Mount Hinge for a 135° angle. Geneva Hinges are
self-centering, and contain a reversible 5° Pivot Pin. In addition,
Custom Pivot Pins are available to accommodate "off
angle" installations. Made of solid brass with all moving
parts (pins and springs) in stainless steel.
Color: Polished Nickel
Minimum Order: 1 Each
Additional Product Information:
Standard Reversible Pivot Pin: Each Geneva Hinge
contains a Reversible Pivot Pin. One side of the Pin is marked 90º.
The opposite side is marked 85º. Standard Geneva Hinges come with
the 90º side activated. Offset Models come with the Pin pre-set to
85º (5º tighter closure into shower interior). The Pin can be
rotated (not flipped upside down) to activate the other side.
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) tempered
safety glass. There are many standard finishes, and custom finishes
that are available upon request. Templates specific to the GEN045
Hinges are packed in each box.
