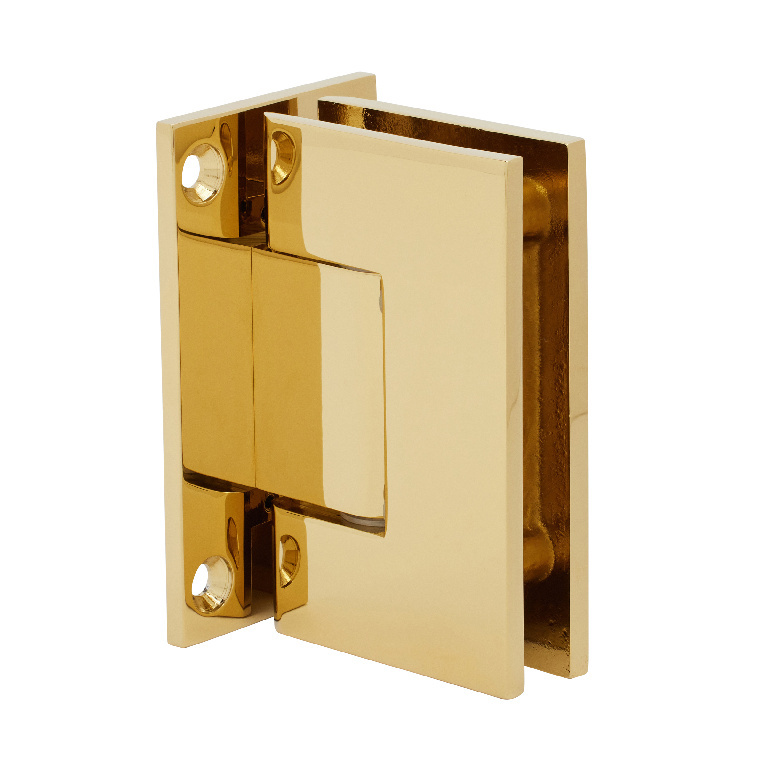

CRL Geneva 037 Series Ultra Brass Wall Mount Full Back Plate Standard Hinge
SKU: GEN037UBR
UPC:
$189.49
(20% off)
$157.91
Product Details:
Self-Centering with Reversible 5º Pivot Pin
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The CRL Geneva Series of professional hinges is
able to accommodate 5/16 to 1/2 inch (8 to 12 millimeter) glass. A
variety of 11 styles, including Wall Mount and Glass-to-Glass
types, gives design flexibility. They are made of solid brass with
all moving parts (pins and springs) in stainless steel. Geneva
Hinges are self-centering, and contain a Reversible 5º Pivot Pin.
In addition, Custom Pivot Pins are available to accommodate
"off angle" installations.
Color: Ultra Brass
Minimum Order: 1 Each
Additional Product Information:
Standard Reversible Pivot Pin: Each Geneva Hinge
contains a Reversible Pivot Pin. One side of the Pin is marked 90º.
The opposite side is marked 85º. Standard Geneva Hinges come with
the 90º side activated. Offset Models come with the Pin pre-set to
85º (5º tighter closure into shower interior). The Pin can be
rotated (not flipped upside down) to activate the other side.
Specifications:
Glass Thickness: 5/16 to 1/2 inch (8 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
