Category: CRL Geneva 037 Wall Mount Full Back Plate Hinge

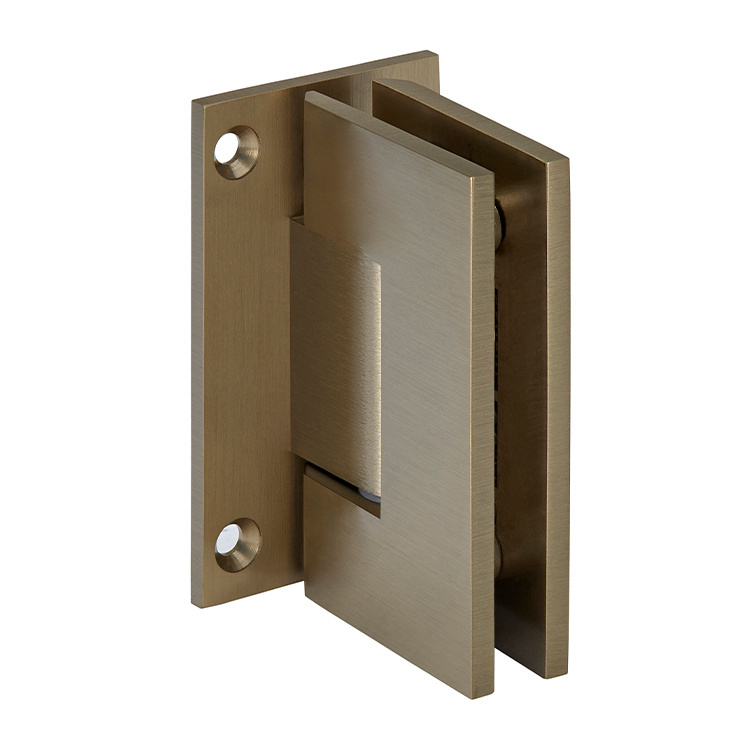

CRL Geneva 037 Series Brushed Bronze Wall Mount Full Back Plate Standard Hinge
SKU: GEN037BBRZ
UPC:
Product Details:
- Self-Centering with Reversible 5º Pivot
Pin
- Available in Several Beautiful Finishes
- Use Monolithic Tempered Glass
|
The CRL Geneva Series of professional
hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter)
glass. A variety of 11 styles, including Wall Mount and
Glass-to-Glass types, gives design flexibility. They are made of
solid brass with all moving parts (pins and springs) in stainless
steel. Geneva Hinges are self-centering, and contain a Reversible
5º Pivot Pin. In addition, Custom Pivot Pins are available to
accommodate "off angle" installations. Standard Reversible
Pivot Pin: Each Geneva Hinge contains a Reversible Pivot
Pin. One side of the Pin is marked 90º. The opposite side is
marked 85º. Standard Geneva Hinges come with the 90º side
activated. Offset Models come with the Pin pre-set to 85º
(5º tighter closure into shower interior). The Pin can be
rotated (not flipped upside down) to activate the other side.
Custom Pivot Pin: Custom Pivot Pins (Cat. No.
GENP1N) are available to
accommodate "off-angle" installations. If the 5º Reversible Pivot Pin
contained in the hinge does not assist in closing the door to the
position desired, you may specify the angle needed for a Custom
Pivot Pin (up to 45º). If using the Custom Pivot Pin, contact
our Technical Sales Department. Your glass sizes and the aesthetics
of the enclosure may be affected by the use of the Custom Pivot
Pin.
Specifications:
- Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
- Construction: Solid Brass
- Hinge Swings: 90º in and 90º out
- Closing Type: Self-Centering when within 15º of closed
position
- Cut-Out Required
- Includes: One Hinge, Gaskets, Screws and Template
Custom finishes are available on request. Contact Technical Sales
by phone at (888) 663-9830 x-7740 .
