Product Details:

For 1/4" to 5/16" (6 to 8 mm) Glass
Chrome Finish
Secures Mirror With Set Screws

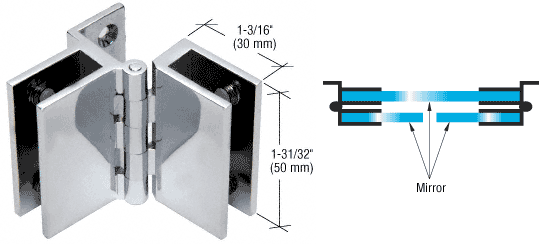

CRL Frameless Triple Mirror Hinge is a compact general purpose glass-to-glass hinge with set screws on the back. This hinge was designed to make frameless triple mirrors that are mounted to the wall. Plastic tipped set screws secure the glass.

Color: Chrome

Hinge Height: 1-31/32 in (50 mm)
Hinge Width:  1-3/16 in (30 mm)

Minimum Order: 1 Package (Comes 4 per package)

Additional Product Information:
Maximum Panel Size to Be Used With This Hinge
5/16 Inch (8 Millimeter) Glass:
Wings: 51-3/16 inch (1300 millimeters) high by 17-3/4 inch (450 millimeters) wide; Center: 51-3/16 inch (1300 millimeters) high by 31-1/2 inch (800 millimeters) wide

1/4 Inch (6 Millimeter) Glass:
Wings: 59-1/16 inch (1500 millimeters) high by 19-1/16 inch (485 millimeters) wide; Center: 59-1/16 inch (1500 millimeters) high by 35-7/16 inch (900 millimeters) wide
