Category: CRL Floor Mounted Closer Tapered Type Spindle
CRL Floor Mounted Closer 1-1/8" Collar Height Tapered Type Spindle
SKU: CRL9040S28
UPC:
Product Details:
Flat
Tapered Type
For use with CRL8300,
CRL8400, CRL8500, BTS80 & J990 Series Floor Closers

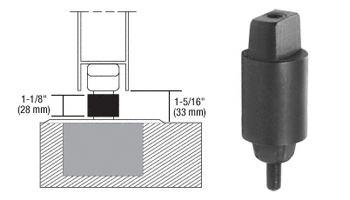

Six Available Heights from
1/8" to 1-5/16"
This CRL Flat
Tapered Type Spindle is available in various collar
heights to accommodate different threshold and finished floor
heights when used with our CRL8300 Series Low Profile
Floor Closers, CRL8400
Series Narrow Profile Floor Closers, or CRL8500 Series Heavy Weight
Capacity Floor Closers.
This spindle will allow
the use of either a CRL9040 Center-Hung or
CRL9077 and CRL9079 Offset
Arms.
Important
Note:
To determine the actual
door clearance from finished floor, add 3/16" (5 mm) to the collar
height.
Example: 1/8" (3 mm)
collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from
finished floor.
