Product Details:
- Specially Formulated High Performance Intumescent
Glazing Tape
- Positive Pressure Tested and Listed
- Use with Wire Glass and Firelite™
|

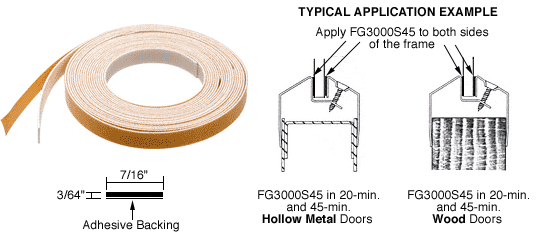

CRL FG3000 Fire Glazing Tapes are
specially formulated high performance intumescent glazing tapes
with adhesive backing on one side, that allow for much larger
vision lites in 20, 45, 60 and 90 minute rated wood and hollow
metal doors with metal vision frames. In 20 and 45 minute rated
hollow metal screens the use of FG3000 allows for much larger side
lites, borrowed lites and glass transoms. Successfully passed 20
minutes (with hose stream) and 45 minutes on wood and metal doors
with vision lites installed. Maximum wood door size with
FG3000S45/FG3000S90: = 48 by 96 inch (1219 by 3048 millimeter)
single and/or pairs approved.
Maximum hollow metal door size with FG3000S45/FG3000S90: = 48 by
120 inch (1219 by 3048 millimeter) single and/or pairs
approved.
Verify all applications with your door and/or frame
manufacturer.
Listed glazing products include: (Wire Glazing) Pilkington, Asahi,
and Central Glass; (Non-Wire Glazing) Firelite™.
Verify all applications with your door and/or frame
manufacturer.
