Product Details:

For 3/16" to 1/4" (5 to 6 mm) Glass
Opens a Full 90°

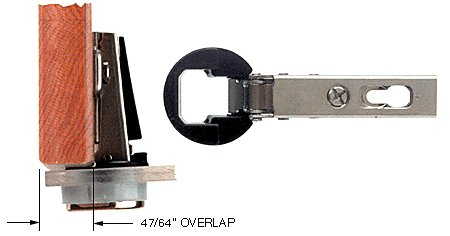

CRL European Style Glass Door Overlay Hinge allows glass to overlap the opening of a cabinet. Our European Style Hinges for surface or flush mounting of glass cabinet doors open a full 90° to allow full frontal access to the interior. Accommodating 3/16 to 1/4 inch (5 to 6 millimeter) thick glass, the hinge requires a 26 millimeter hole for installation. Common mounting plate (Cat. No.EH122) and hinge cover plate (Cat. No.EH156) fit either Overlay or Inset Type Hinges. Two glass cover plate finishes fit either hinge. The entire system is designed for easy installation, and minor adjustments for precise fit can be made without moving the entire hinge.

Minimum Order: 1 Package

It is recommended that glass door weight not exceed the following:

3 Ft High Door Use 2 Hinges
5 Ft High Door Use 3 Hinges
7 Ft High Door Use 4 Hinges
8 Ft High Door Use 5 Hinges

(2) Hinges - 20 pounds
(3) Hinges - 32 pounds
(4) Hinges - 45 pounds
(5) Hinges - 51 pounds
