Product Details:

Dual Monitoring Lock
Selectable Locking Time
12 or 24 Volts DC
Electronic Fail Safe: Requires Power to Lock
UL Listed

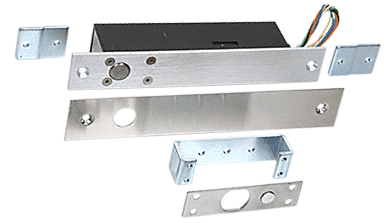

This CRL Electric Solenoid Bolt provides added security. It can be used with double acting doors. It features a 0, 2.5 and 5 second locking timer, and dual monitoring capability. Input Voltage can be selected as 12 or 24V DC. The Lock requires that the supplied Strike be properly installed so that the Lock can sense that the door is in the closed position. Brushed stainless cover plate included.


Face Size: 1-5/16 x 8-5/16 in (33 x 211 mm)
Depth: 1-3/4 in (44 mm)
Cover Plate: 1-1/2 x 8-3/4 in (38 x 222 mm)
Minimum Order: 1 Each


Additional Product Information:
Specifications:
Fail Safe
12 or 24 Volt (Not Dual)
Current Draw at 12V = 300mA (standby)
Current Draw at 24V = 150mA (standby)
