Category: CRL Manual Bi-Fold Projected Service Windows
CRL Duranodic Bronze Manual Flush Mount Bi-Fold Service Window
SKU: BFW2DU
UPC:
$4,401.59
(20% off)
$3,667.99
Product Details:

Can not be shipped by UPS, FedEx - Common Carrier Only.
Call for shipping quote. 216-663-9830
Select From Manual, Semi-Automatic and Fully Automatic
Operation
CRL Bi-Fold Service Windows are perfect
anywhere a high quality bi-folding window is required.
Features include two panels that simultaneously open outward
towards the customer and a burglar bar for extra security.
Projected and Flush Mount models are available in three different
configurations:
MANUAL - Both panels move simultaneously as either panel is
manually operated.
SEMI-AUTOMATIC - Opening the window is achieved by pushing on the
hip activated slide bar. Step away from the window and the two
panels automatically close.
FULLY AUTOMATIC - Opening the window is as easy as stepping in
front of the built-in infrared sensing device. Simply step away and
the two panels automatically close.
The Automatic/Off/Manual Switch provides three different settings:
AUTOMATIC operates with the infrared sensing device; MANUAL
operates with a jamb mounted push button; OFF defeats all functions
and closes the two panels. UL/CSA Approved Class 2 Transformer.
Color: Duranodic Bronze

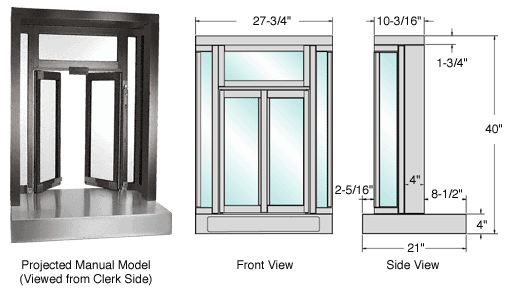

Overall
Size:
27-3/4 in (705 mm) Wide x 40 in (1016 mm) High
Service Opening Width: 15 in (381 mm)
Service Opening Height: 25 in (635 mm)
Specifications:
Materials: Aluminum Extrusion; Pile Weatherstrip; Glazing Vinyl;
Stainless Steel Shelf or Stainless Steel Sill
Glazing: 1/4 inch (6 millimeter) Clear Tempered Glass
Stock Finishes: Satin Anodized or Duranodic Bronze
Bi-Fold Configuration: Fully Automatic; Self-Closing; Manual
To Determine Rough Opening: Add 1/2 Inch (12.7 millimeter) to
Width, 1/4 Inch (6.4 millimeter) to Height
Estimated Lead Time: 15 WORKDAYS + SHIP
