Product Details:
- Four Panels: Two Fixed, Two Sliding
- Available Unglazed Only
|

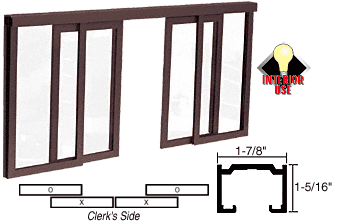

The CRL Diane Pass-Thru Window is cut
to your exact specifications and has two sliding panels that meet
in the center and are flanked by fixed side panels, giving you an
extra wide, unobstructed counter surface. The easy rolling top
track glides the panels silently and smoothly. All guides, rollers
and catches are included with your order. Suggested glass cutting
formula when using CRL glazing vinyl: outside frame dimensions
minus 1-1/2 inches (44 millimeters). Diane
Windows are not available with screens.
Note: These Horizontal Sliding Pass-Thru
Assemblies are recommended for interior application only. Each
assembly is sold without glass, and includes the appropriate
glazing vinyl for your application. Please specify one of the
following glazing vinyls: 1/8 inch (3 millimeter), 3/16 inch (5
millimeter), 7/32 inch (5.5 millimeter) or 1/4 inch (6 millimeter).
All assemblies are ordered by the frame size, fabricated to fit
tight in your opening. Frame members are color coded to facilitate
assembly and glazing.
