Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass

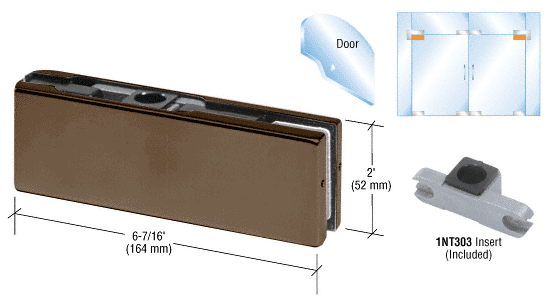

The CRL Top Door Patch Fitting includes the 1NT303 Insert for use with our CRL9040WBP Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32 inch (15 millimeter) Diameter type pivots. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8 or 1/2 inch (10 or 12 millimeter) Glass.

Color: Duranodic Bronze

Minimum Order: 1 Each

Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) diameter hole and corner notch.
Important Note:
THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING THIS HARDWARE:
MAXIMUM HEIGHT: 108" (2744MM)
MAXIMUM WEIGHT: 176 LBS (80KG)
MAXIMUM WIDTH: 43" (1100MM)
IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD BE USED.
