CRL Duranodic Bronze Finish Right Hand Sidelite Transom Patch with Support Fin Bracket and INT300 Insert
C.R. Laurence CRL Duranodic Bronze Finish Right Hand Sidelite Transom Patch with Support Fin Bracket and INT300 Insert | PH41RDU
Category: Right Hand Sidelite Mounted Transom Patch with Support Fin Bracket and 1NT300 Insert
CRL Duranodic Bronze Finish Right Hand Sidelite Transom Patch with Support Fin Bracket and INT300 Insert
SKU: PH41RDU
UPC:

$169.54 (20% off)

$141.28

Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass

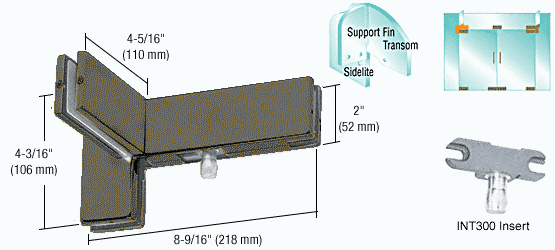

The CRL Right Hand Sidelite Mounted Transom Patch with Support Fin Bracket is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with a CRL PH20A or PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a PH92 Ceiling Mounted Support Fin Bracket.

Color: Duranodic Bronze

Minimum Order: 1 Each

Additional Product Information:
Glass Fabrication Required: Five 3/4 inch (19 millimeter) Diameter Holes and Two Corner Notches.
Important Note:
If the weight of the transom exceeds 100 pounds (45.4 kilograms) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight.
