Product Details:

High Density Cast Body with Lock Mechanism
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass

The CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the verticle edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.


Color: Duranodic Bronze

Minimum Order: 1 Each

Additional Product Information:
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
Glass Fabrication Required:

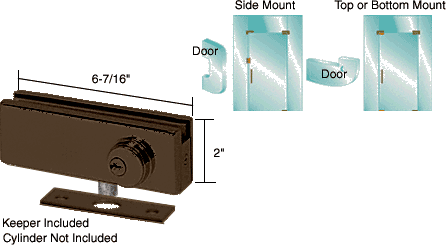

Top or Bottom Mount:
One 3/4 inch (19 millimeter) Diameter Hole and One Corner Notch
Side Mount:
One 3/4 inch (19 millimeter) Diameter Hole and U-Cutout with Hole on Top
Important Note:
Cylinders are optional and not included with lock body.
