Product Details:

Requires Cutting Instructions.
Call toll free for shipping quote. 216-663-9830

Made from Highest Quality No. 6063 Alloy
Available in Many Finishes

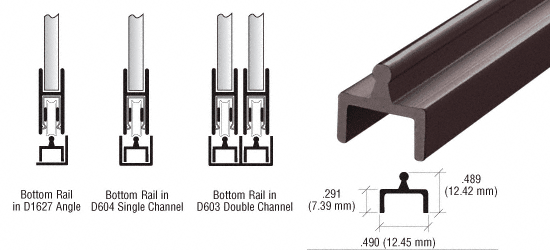

CRL Aluminum Single Bottom Rail is a universal bottom rail used with other bottom channels and acts as a rail for sliding panels. Removes from channel for easy cleaning.

Color:        Duranodic Bronze Finish


Length:      12 ft (3.66 m)
Thickness: .059 in (1.50 mm)

Minimum Order: 1 Stock Lengths ( 12 ft long)


Additional Product Information:
CRL Aluminum Extrusions and Accessories allow you to customize track assemblies to your individual needs. Made from the highest quality, No. 6063 alloy - T-5 aluminum, our extrusions are uniformly anodized. Anodizing is the process of electronically adding a thicker coat of oxidizing to aluminum, which protects the metal from scratches, blemishes and atmosphere. The standard finish is commercial satin anodized, but it is also available in commercial 145 gold, duranodic 312 bronze, black, bright and bright gold finishes.
Commonly used with our D603 series channel.
