Product Details:

Requires Cutting Instructions.
Call toll free for shipping quote. 216-663-9830

Made From Highest Quality 6063 Alloy
Available in Many Finishes
Use Either D650 Nylon or D649 Steel Wheel Assemblies

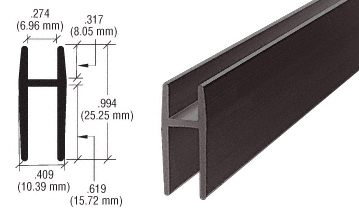

CRL Aluminum D5610 "H" Bar can be used in place of other manufacturers "H" Bar. Designed for use with 3/16 inch (5 millimeter), 7/32 inch (5.5 millimeter) and 1/4 inch (6 millimeter) materials.
3/16 inch (5 millimeter) glass doors requires the use of D752 Vinyl, 7/32 inch (5.5 millimeter) glass doors requires the use of D749 Vinyl and if using 1/4 inch (6 millimeter) glass doors, it is recommended that the glass be wet glazed into the shoe for proper fit.

Color:   Duranodic Bronze

Length:      12 ft (3657.6 mm)
Thickness: .058 in (1.47 mm)

Minimum Order: 1 Stock Length ( 12 ft long)

CRL Aluminum Extrusions and Accessories allow you to customize track assemblies to your individual needs. Made from the highest quality, No. 6063 alloy T-5 aluminum, our extrusions are uniformly anodized. Anodizing is the process of electronically adding a thicker coat of oxidizing to aluminum, which protects the metal from scratches, blemishes and atmosphere.
You can use either theD5650 Nylon Wheels or D5649 Steel Wheels with this "H" bar.
