Commercial Grade Closer Suitable for Doors up to 48" (1219 mm) Wide and Weighing 143 to 187 lbs (65 to 85 kg)
Independent Valves to Adjust Closing and Latching Speeds
ANSI A156.4 Grade 1

Door Closers Cross Reference Chart

Door Closers Data

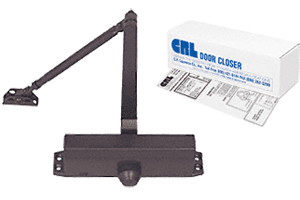

The CRL DC54 Size 4 Surface Mount Door Closer is perfect for most commercial applications. The Size 4 rating is suitable for interior doors up to 48 inches (122 millimeters) and exterior doors up to 42 inches (107 millimeters). Applicable door weight should be between 143 and 187 pounds (65 and 85 kilograms). The closer is supplied with an adjustable back check feature to protect the doors and hardware from damage due to wind or violent door swings in the opening cycle. Both the closing and latching speeds are independently adjustable and will satisfy your customer's requirements for smooth operating door control.

Color:                               Bronze

Closer Body Length:          9-3/4 in (247 mm)
Horizontal Mounting Holes: 9-1/16 in (230 mm) Center to Center
Vertical Mounting Holes:     3/4 in (19 mm) Center to Center

A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications.

Additional Product Information:

Optional accessories, such as Drop Plates and Hold-Open Arms, are available for special installations.
