| Suitable for Doors Up to 36" (914
mm) Wide and Weighing 33 to 66 lbs (15 to 30 kg)
Independent Valves to
Adjust Closing and Latching Speeds
ANSI A156.4 Grade 1
Door Closers Cross Reference Chart
Door Closers Data

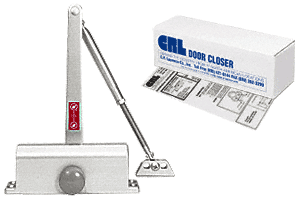

The newest addition to the
CRL Exposed Door Closer Line is the CRL DC51 Size 1 Light
Duty Surface Mount Door Closer for light commercial and
residential applications.
The Size 1 rating will
fill your requirements when working with doors that are less than
36 inches (914 millimeters) wide and weighing up to 66 pounds (30
kilograms).
With many of the features
of our larger closers, the CRL DC51 series has
independently adjustable closing and latching controls that can be
variably adjusted to suit your individual
requirements.
Color: Aluminum
Closer Body Length: 7-1/8
in (181 mm)
Horizontal Mounting Holes: 6-1/2 in
(165 mm) Center to Center
Vertical Mounting Holes: 3/4 in (19 mm) Center to
Center
A Parallel Arm Bracket and
mounting hardware are included with each closer permitting
universal installation for regular, top jamb or parallel arm
applications.
.
Optional accessories, such as Drop Plates and Hold-Open
Arms, are available for special installations.
|
