Product Details:

Matches Width of Door and Sidelite Rails and Accepts Roll-In Gasket, Top Pivot Block and Flush Snap-In Insert
Available in Stock Lengths, Fabricated Headers, or Headers with Side Pockets for "Lift and Drop" Panel Glazing
Special Sidelite Rail Adapter Allows for a Continuous Sight Line Using the Sidelite Rail in Conjunction with the Narrow Header

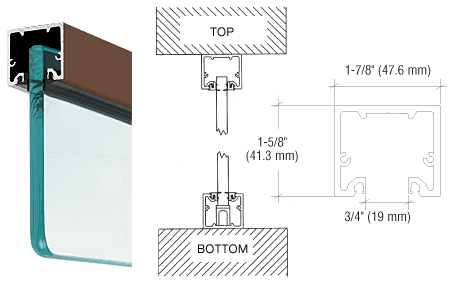

This CRL Wide "U" Channel and Narrow Header was developed with three uses in mind: As a "U" Channel that would be the same width as our Sidelite and Door Rails; as a Narrow Header that is the same width as our Sidelite and Door Rails, and will accept a top free-swinging pivot to secure the top of the doors; as an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4 inch (6.3 millimeter) header saddle. All drilling, tapping and fabrication is done during the manufacturing process to save time and prevent the need for field fabrication.

Color: Dark Bronze

Length: 120 in (3.05 m)
Width: 2 in (51 mm)
Height: 1-11/16 in (43 mm)

Additional Product Information:
This product is manufactured as needed. Lead time of 1-2 weeks.
