Category: CRL 4x10 Center Lock With Bottom Rail Extension Throw Rod
CRL Dark Bronze Anodized 4" x 10" Center Lock With Bottom Rail Extension Rod Throw - Two Point With Handle
SKU: DE4102DU
UPC:
Product Details:
- Allows You to Lock Doors at a Comfortable
Height
- Two Point Locking
- Completely Fabricated and Ready to
Install
- Available in Several Architectural
Finishes
- Custom Colors Available on Special Order
- For 1/2" (12 mm) Tempered Glass
|

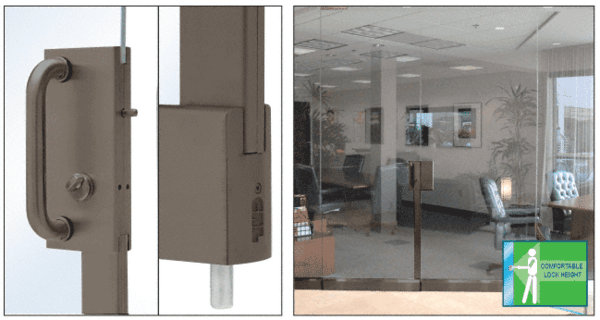

This CRL 4" x 10" Center Lock has two
throws, an extended throw that latches through the bottom door rail
into the floor, and a horizontal throw that latches into the jamb
or adjacent Glass Mount Keeper. It is completely activated at a
comfortable distance above the floor utilizing a built-in Adams
Rite 1860-02 Lock with a modified extension rod allowing the throw
to enter the floor. A small edge channel that travels down from the
Center Lock to the bottom rail conceals the extension rod. It
includes an 8 inch (203 millimeter) back-to- ack "D" Handle, a
Thumbturn on the inside, and a Keyed Cylinder on the outside.
ORDERING NOTE: his innovative system is intended for the
fabrication of new doors only. Retrofit applications are not
recommended because the bottom door rail must be factorymodified to
accept the Extension Rod Throw, and the door glass requires a
specially shaped cut-out to accept the Center Lock. Please contact
Technical Sales for ordering assistance.
