Category: CRL 4x10 Center Lock With Bottom Rail Extension Throw Rod
CRL Dark Bronze Anodized 4" x 10" Center Lock With Bottom Rail Extension Rod Throw - One Point Without Handle
SKU: DE4100DU
UPC:
Product Details:
- Allows You to Lock Doors at a Comfortable
Height
- Available With or Without Back-to-Back "D"
Handle
- Completely Fabricated and Ready to
Install
- Available in Several Architectural
Finishes
- Custom Colors Available on Special Order
- For 1/2" (12 mm) Tempered Glass
|

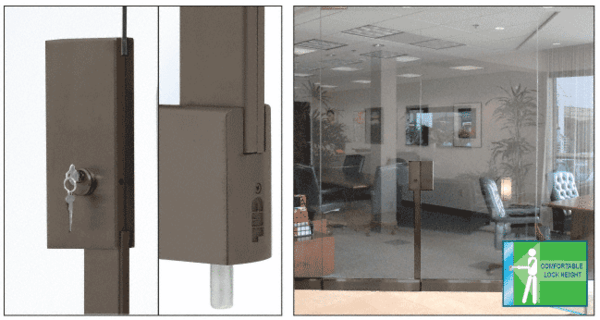

This CRL 4" x 10" Center Lock has an
extended throw that latches through the bottom door rail and into
the floor. It is completely activated at a comfortable distance
above the floor utilizing a built-in Adams Rite 1860-01 Lock with a
modified extension rod allowing the throw to enter the floor. A
small edge channel that travels down from the Center Lock to the
bottom rail conceals the extension rod. The Center Lock is
non-handed, with a Thumbturn for the inside, and a Keyed Cylinder
for the outside. You can order them with or without an 8 inch (203
millimeter) back-to-back "D" Handle. ORDERING NOTE: This innovative
system is intended for the fabrication of new doors only. Retrofit
applications are not recommended because the bottom door rail must
be factory-modified to accept the Extension Rod Throw, and the door
glass requires a specially shaped cut-out to accept the Center
Lock. Please contact Technical Sales for ordering assistance.
