Category: CRL 3/4" Offset Intermediate Aluminum Pivot Set
CRL Dark Bronze 3/4" Offset Intermediate Left Hand Pivot
SKU: 41J190L313
UPC:
Product Details:
Intended For Use With Aluminum Storefront Doors to Maintain Door
Alignment
Fully Retractable Pin With 5/8" Vertical Adjustment
Full Race Ball-Bearing and Oilite Bushing

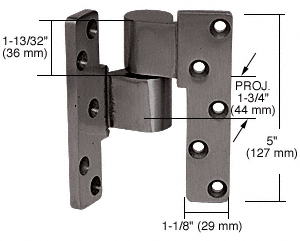

The Jackson J190 Intermediate 3/4" Offset Pivots are
designed to be used with standard 1-3/4 inch (44 millimeter)
storefront aluminum doors to maintain door alignment. They are not
intended to be load-bearing pivots. These Intermediate Pivots are
handed and are a full-mortise type. They feature a full race
ball-bearing and oilite bronze bushing for a long maintenance free
life. These pivots allow for a 5/8 inch (16 millimeter) vertical
adjustment and feature a fully retractable pin for easy
installation. These pivots are templated for use with new or
retrofit applications.
Color: Dark Bronze
Important Notes:
These Pivots maintain door alignment when used with doors 90 inches
(2286 millimeters) or taller. Each additional 30 inch (762
millimeters), or fraction thereof, warrants the use of an
additional intermediate Pivot.
